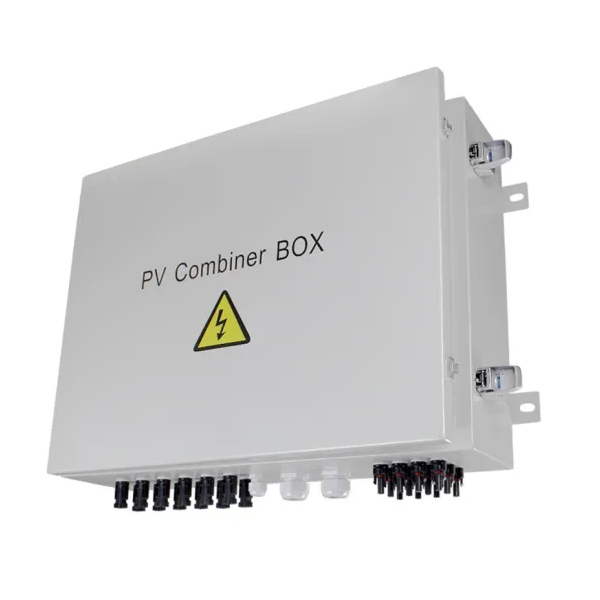

Introduction of Solar Energy System Combiner Box

The Zhechi Electric® Solar Energy System Combiner Box is suitable for inverter (MAX input voltage DC1000V,4PV input channel, 1 output channel, single MPPT inverter). Box body is made of PVC engineering materials,with test for fire retardant, Temperture rise,anti impact, anti ultraviolet, and other testing.

IP65 protection grade.

Features of Solar Energy System Combiner Box

●High reliability

With DC FUSE

With DC Surge Protection Device

With DC circuit breaker or DC load isolation switch.

●Strong adaptability

IP65 desigh,waterproof,anti dust and anti ularaviolet.

Strict test for high and low temperature,used widely/

The simple installation, the simplified system wiring, the convenient wiring.

The box body is made of cold rolled steel and other metal materials.

●Flexible configuration

Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules. Current rating of the photovoltaic fuse, cicuit breaker, load isolation switch is modified.

Technical Parament of Solar Energy System Combiner Box

Name ZSGF-PV12/1
Electric parameter
System maximum dc voltage / 1000
Maximum input current for each string 10A
DC fuse rating 15A
No. of input/output array 3
Number of Iutput strings 12
Number of Output strings 1
Max diameter of each input cable(mm) 10mm
Max diameter of each input cable(mm) 40mm
Communication interface Rs485 Modbus
Voltage protection level 2.8kV 3.8kV
Maximum continuous operating
voltage Uc
630V 1050V
Poles / /
Structure characteristic
System
Protection grade IP65

MINI Circuit breaker
SM1-225/4P/DC1000V
SMC4 Waterproof Connectors Standard
PV dc fuse Standard
PV surge protrctor SUP4-S40/3PDC1000V
Monitoring module /
Preventing diode /
Box material Cold rolled steel box
Installation method Wall mounting type
Operating Temperature –25℃~+70℃
Elevation of temperature 2km
Permissible relative humidity 0-95%,no condensation
Flame retardance comform to IEC60695-2-11, ULsubject to 94V-2
Width*High*Depth(mm) 640*450*180
