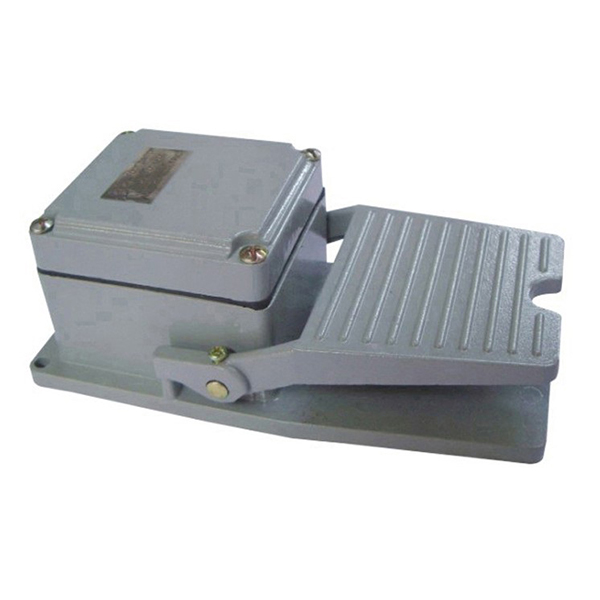

The Zhechi Electric® Push Button on off Foot Pedal Switch which is cheap and made by Chinese manufacturer and supplier suits in the circuit, AC 50~60Hz, rated working voltage up to 380V AC, rated controlled capacity up to 300VA, rated thermal current up to 5A. Can frequently make & break the circuit.
1. Altitude: not over 2000m;
2. Ambient temperature: not over +40ºC, not below -5ºC, average temperature not over +35ºC in 24 hours;
3. Relative humidity: not over 50% when +40ºC, higher humidity is allowed if lower temperature;
4. Pollution class: 3;
5. Mounting condition: mounting place without obvious impact or vibration. Mounting in the dielectric without explosive danger, the dielectric without gas or dust can corrode metal & damage isolation. Mounthing place without rain or snow invasion;
6. Mounting category: III.
High strength, reliable, and safe universal pedal switch;
Metal series shell, such as engineering plastic, steel panel, aluminium alloy etc;
Plastic series shell,can OEM/ODM;
Widely used for industrial automation equipment, transport, pressing, medical treatment, test and etc.
| Types | Model | Rating | Internal switch | Contact | Action force | Material |
| Standard type Reset type | FS-101 | 10A 250VAC | V type micro switch | 1A1B | 1.2kg | Plastic |
| FS-102 | 15A 250VAC | TM-1704 | 1A1B | 1.1kg | ||
| FS-3 | 15A 250VAC | V type micro switch | 2A2B | 1.2 kg | Aluminum cast | |
| FS-3S | 15A 250VAC | TM1704 | 2A2B | 1.1kg | ||
| Standard type Alternate action | FS-105 | 6A 250VAC | Imported alternative switch |
PUSH ON PUSH OFF |
2kg | Plastic |
| FS-106 | 6A 250VAC | Imported micro switch |
PUSH 1A PUSH 1B |
1.5 kg | ||
|
Small type Fixed type |
FS-201 | 10A 250VAC | V type micro switch | 1A1B | 0.7 kg | Plastic |
| FS-01 | 10A 250VAC | 1A1B | 0.7 kg | |||
| FS-1 | 10A 250VAC | 1A1B | 0.9 kg | Iron | ||
| Protective cover type | FS-302 | 15A 250VAC | TM1704 | 1A1B | 3.2 kg | Aluminum cast |
| FS-305 | 6A 250VAC | Imported alternative switch |
PUSH ON PUSH OFF |
3.1 kg | ||
| FS-306 | 6A 250VAC | Imported micro switch |
PUSH 1A PUSH 1B |
3.5 kg | ||
| FS-502 | 15A 250VAC | TM-1704 | 1A1B | 3.2 kg | ||
| FS-602 | 15A 250VAC | Button spring switch | 2*1A1B | 2.8 kg | ||
| FS-702 | 15A 250VAC | TM1704 | 2*1A1B | 3.2 kg | ||
| Large type | FS-402 | 15A 250VAC | TM1704 | 1A1B | 3.2 kg | |
| FS-802 | 15A 250VAC | TM1704 | 2*1A1B | 3.2 kg |
